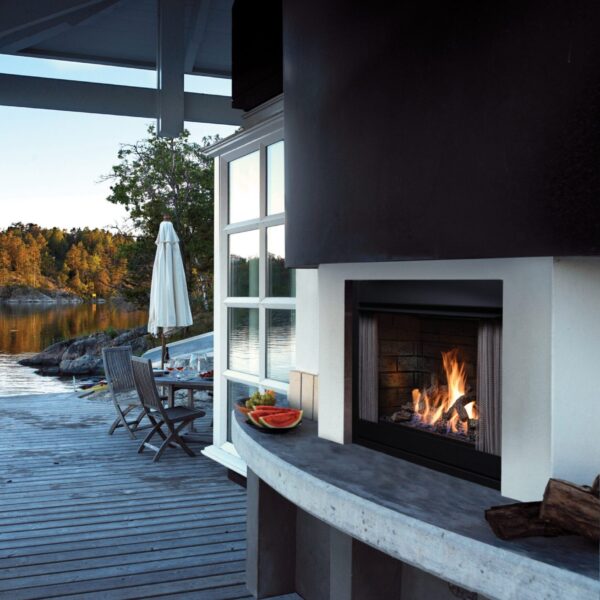

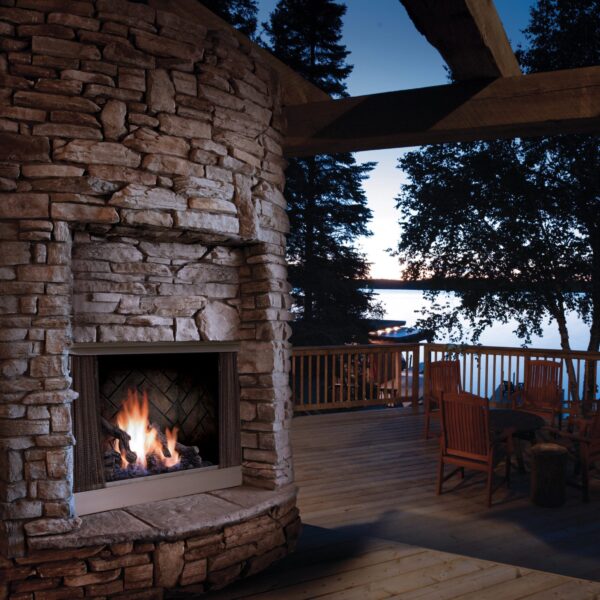

Barbara Jean Collection Traditional Outdoor

Standard Features

• Hi/lo Millivolt valve with variable adjustment of flame and BTU
• 55,000 Max BTU input
• A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed
• Stainless steel pull screen
• Lava rock

Optional Features

Surround: Stainless steel
Refractory Liner: Traditional and Herringbone
Spark Assist: Battery operated pilot burner igniter
Weather Cover: Stainless steel or black
Remote Control: On/Off

Screened Porch Installation Guidelines

• Porch Area – 96 sq. ft.
• Ceiling Height – 92″
• A minimum of two walls can be screened but must be open to outside ventilation:
  Minimum Screen Height – 78″
  Screen Area – 64 sq. ft
